Product Application

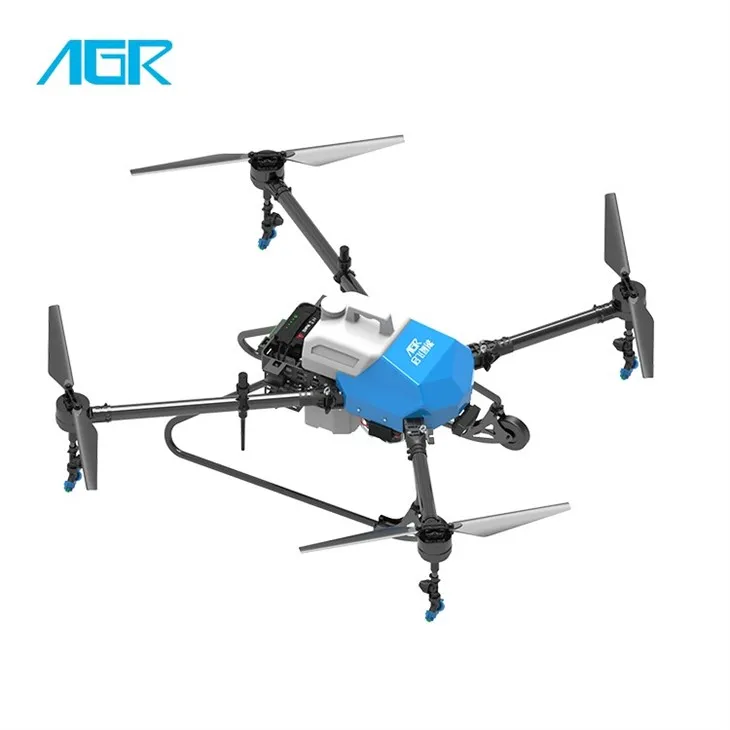

* Innovation commercial agricultural spraying drone UAV for farmer by AGR independent R&D Team.

* Special shaped structure,stable and durable.

* Fold able arms, rapid transfer.

* Pluggable tank 10L, convenient to recharge.

* Compact Size with wheel, easy to change place to work

* commercial agricultural spraying drone UAV for farmer have Waterproof IP56, convenient to maintenance for farmers

2（1）

Model	A10
Motor Type	Brushless Motor X 4
Hourly Operating Area	2-5.3 Hectare
Feature	Wheel design, Pluggable tank
Capacity	10L
Hovering Time (without payload)	25 mins
Hovering Time (full payload)	15 mins
Battery Type	Lithium-ion
Battery Volume	16000 mAh
Cover Finshing	Light Blue /Blue/Red/Grey/White/Customized
N.W	12.3kg
Product Size	1650mm×1650mm×574mm
Packing Size	1200mm×475mm×574mm
Maximum Take-off Weight	26.7kg

The principle of Wheel design agricultural spraying drone machine:

Wheel design agricultural spraying drone machine can be divided into body structure, power mechanism, flight control, digital communication, navigation and navigation, and spray equipment. A fully market-oriented R&D and manufacturing industry should be composed of professional companies and plant protection UAV companies.

The spraying speed of the agricultural unmanned drone is 2 mu/s, the spraying device width is 3-4m, the working width is 4-8m, and the distance to the crops can be kept at a fixed height of 1-2m at least, and the scale operation can reach 80-100 mu per hour, its efficiency is at least 100 times higher than conventional spraying. Wheel design agricultural spraying drone machine can save at least 50% of pesticide usage and 90% of water consumption using spray spraying.
