Drone Agriculture Pesticide

Drone Agriculture Pesticide
Details:
Working area(mu/hour):60-200
droplet(microns):80-250
flow rate(L/min):1-8
spray width(m):3-8
Size(mm):1200*1191*570
Bare metal weight(kg):19
battery weight(kg):8.5
Remote control distance(m):2000
flight altitude(m):30
load(kg):22L
charging time(min):10-20
charging power(W):2400
flight duration(min):10-15
Send Inquiry
Chat Now
Description
Send Inquiry



ProdA22uct Introduction

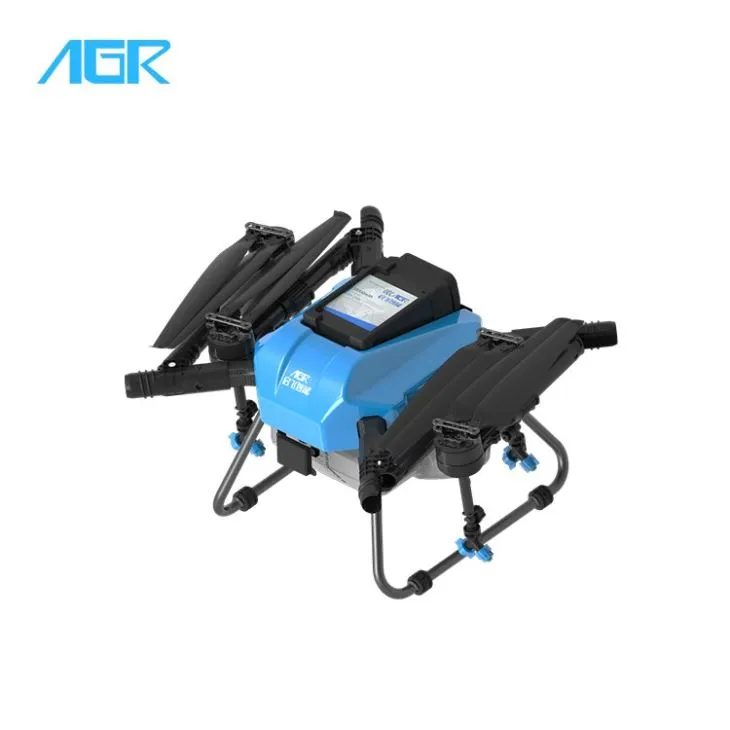

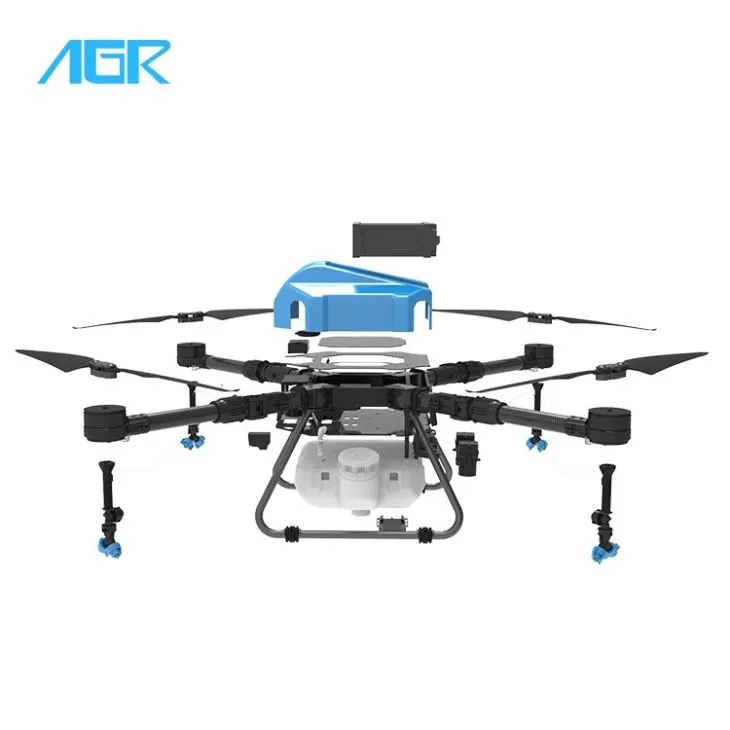

Drone Agriculture Pesticide features spray width of 3-8m and maximum altitude of 30m. It adopts modularization design to integrate various functional components, like four brushless diaphragm pumps, double pressure nozzles, double FPV cameras, anti-spark module, and quite importantly, its unique, fluorescent low center of gravity fertilizer box design. The applicable crop species includes rice, cotton, maize, wheat, grape, cherry, orange, eggplant, peanut, sunflower, etc. This Drone Agriculture Pesticide is suitable for farmers who possess 200-1000 acres of crop planting scales.


Advantages

Drone Agriculture Pesticide has the advantages of reducing working labor costs effectively and improving work efficiency. Its diaphragm pump has stable flux rate, high working pressure, and long service life. Its pluggable tank uses glass fiber reinforced plastics, which is quite corrosion-resistant due to its strong rigidity. The spraying system is anti-drip device, which won't drip liquid after spraying is completed, and can avoid spray burn. This drone applies simple structure, making the repairing, replacement and maintenance very easy to carry out.


2

4


Model

A22 2020

Motor Type

Brushless Motor X 4

Hourly Operating Area

2.66-6.66 Hectare

Operation Area per Tank

Modularization Design, Fewer Accessories

Droplet Size

80-240 μm

Flow Rate

1L/Min - 5L/Min

Spray Width

3 - 6m

Battery Type

Lithium-ion

Maximum Attitude

30m

Cover Finshing

Light Blue /Blue/Red/Grey/White/Customized

Full Loading Weight

25.7kg

Product Size

1140mm×1140mm×480mm

Packing Size

905mm×775mm×585mm

Aircraft Weight

11.3kg



22

23

24




8

9

10


12

13

14

15


Precautions for product use

1. Stay away from the crowd! Safety always comes first!

2. Before operating the aircraft, you must first ensure that the battery of the aircraft and the battery of the remote control are adequately charged before performing related operations.

3. It is strictly forbidden to operate the aircraft after drinking.

4. It is strictly forbidden to fly on the head.

5. Do not fly it when it rains! Water and water vapor can enter the transmitter from the gaps such as antennas and joysticks and may cause loss of control.

6. D not fly it in lightning weather. This is very, very dangerous!

7. Be sure to keep the aircraft flying within your line of sight.

8. Fly away from high-voltage wires.

9. Installing and using the remote control model requires professional knowledge and technology. Incorrect operation may cause equipment damage or personal injury.

10. Avoid pointing the antenna of the transmitter to the model, because this is the weakest angle of the signal. The radial direction of the transmitter antenna should be used to point at the controlled model, and the remote control and the receiver should be avoided near metal objects.

11. The 2.4GHz radio waves propagate almost in a straight line. Please avoid obstacles between the remote control and the receiver.

12. If the model has been dropped, bumped, immersed in water, or other accidents, please do a full test before the next use.

13. Keep models and electronic devices away from children.

14. When the voltage of the remote control battery pack is low, don't fly too far, and you need to check the battery pack of the remote control and receiver before each flight. Do not rely too much on the low-voltage alarm function of the remote control. The low-voltage alarm function mainly reminds you when you need to charge. Without electricity, it will directly cause the aircraft to lose control.

15. When you place the remote control on the ground, please be careful not to lay it on the floor. Because it may be blown down by the wind when it is placed vertically, it may cause the throttle lever to be accidentally pulled up, causing the power system to move, which may cause injury.
