Details:
Independent Research and Development Product
10L pesticide sprayer with 8 nozzles
seeder, power, sowing drone
Send Inquiry
Chat Now
Description
Send Inquiry

   25


Product Application

* Independent Research and Development Product, Exclusive Design by AGR.

* 10L pesticide sprayer with 8 nozzles, centimeter level positioning accuracy.

* Agriculture Drones can be transformed into seeder, power, sowing drone.

* Cloud Intelligent Management, designed with map planning function and handheld station

* Equipped with dual antennas to measure direction and has strong anti-interference ability.

* Intelligent autonomous flight and early warning, automatic return if lost control signal.

* Intelligent planning route, precise spraying of pesticides in the direction of plant growth, no leakage spraying and no repeated spraying.

2

26


Model

Q10 Agriculture Drones

Motor Type

Brushless Motor X 4

Hourly Operating Area

2.66-6.66 Hectare

Operation Area per Tank

Modularization Design, Fewer Accessories

Droplet Size

80-240 μm

Flow Rate

1L/Min - 5L/Min

Spray Width

3 - 6m

Battery Type

Lithium-ion

Maximum Attitude

30m

Cover  Finshing

Light Blue /Blue/Red/Grey/White/Customized

Full Loading Weight

25.7kg

Product Size

1140mm×1140mm×480mm

Packing Size

905mm×775mm×585mm

Aircraft Weight

11.3kg

21


AGR is an optimized agricultural drone for crop protection, especially designed for the small & intermedium farmlands, systematically foldable design, stable, heavy loading, optimal wind-resistance, easy to take and transfer. Nozzles are fixed under the propellers. The downward flow can enhance the penetration effect and swing the leaves up and down to spray farming chemicals on both sides. After 7-15 days training, the trainees can master how to operate, how to maintain, how to repair and others.


32

33

34

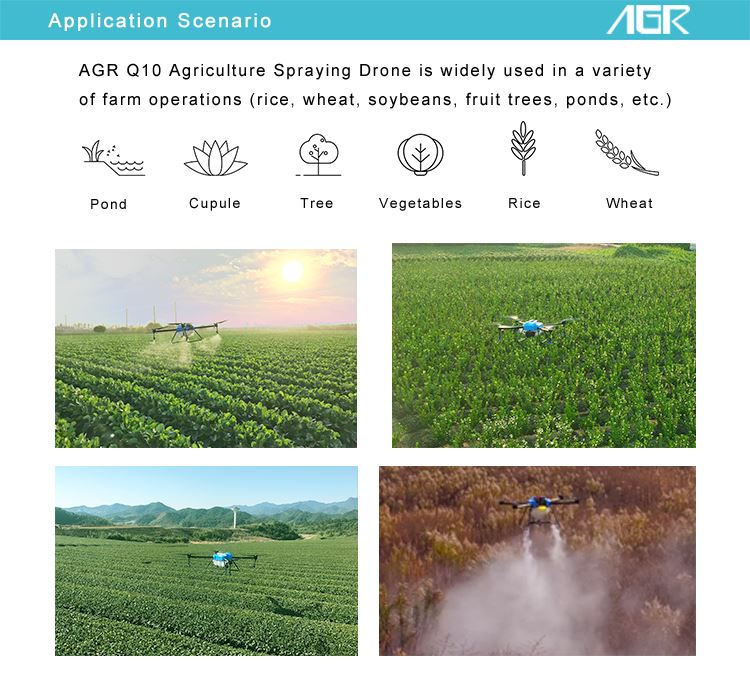

Spraying pesticides by using drones is the innovative technique used in the field of agriculture. Sprayer drone applied to spray pesticides and other liquid chemicals with a wide range of application, such as crops, vegetables, orchard, cash crops, tea, sugarcane, coffee, banana, etc.

1) Security.

The sprayer drones protect farmers from poisoning and heatstroke while utilizing harmful pesticides.

2) High efficiency.

50-100 acres can be sprayed per day, which is 30 times more than the traditional spraying methods.

3) Environment protection.

Water and soil pollution is severely reduced with the fixed position and orientation method.

4) Wastage reduction.

30% of pesticide saving is established by a high degree of atomization and as the chemical fog can be sprayed to all levels of the crop.

5) Water saving.

90% of water can be saved in comparison to traditional spraying methods. This is possible by utilizing ultra low volume spraying technology.

6) Lower cost.

There is a 97% reduction in cost compared to traditional spraying methods.

7) Wide range of applications.

It's not influenced by the terrain and crop height, has an ergonomic and innovative remote control, easily manages low altitudes flights and does not harm the crop.

8) Easy to use and maintain.

It has a long productive lifespan, low maintenance cost, and its parts are easy to replace, as and when required.

Our technical team comprises of a pool of international experts with many years of experience in the agriculture industry. Through understanding and working together with our partner’s requirements and needs, AGR can provide the most economical and practical solutions to help growers achieve both quality and quantity yield.


For the past few years, we have been actively serving international clients from Europe, South Asia and Middle East. And we are proud to mention that most of our clients are returning satisfied clients.


FAQ

Q: Who are you?

A: We are a reliable drone manufacturer, who is specialized in drone R&D for almost 6 years.



Q: How long is your delivery time?

A: Generally it is 2 weeks after deposit.



Q: Do you provide samples ?

A: No, we provide a complete solution.



Q: Can you do customized product?

A: Yes, we do.



Q: What is your terms of payment ?

A: T/T, L/C, etc.
