Product Application

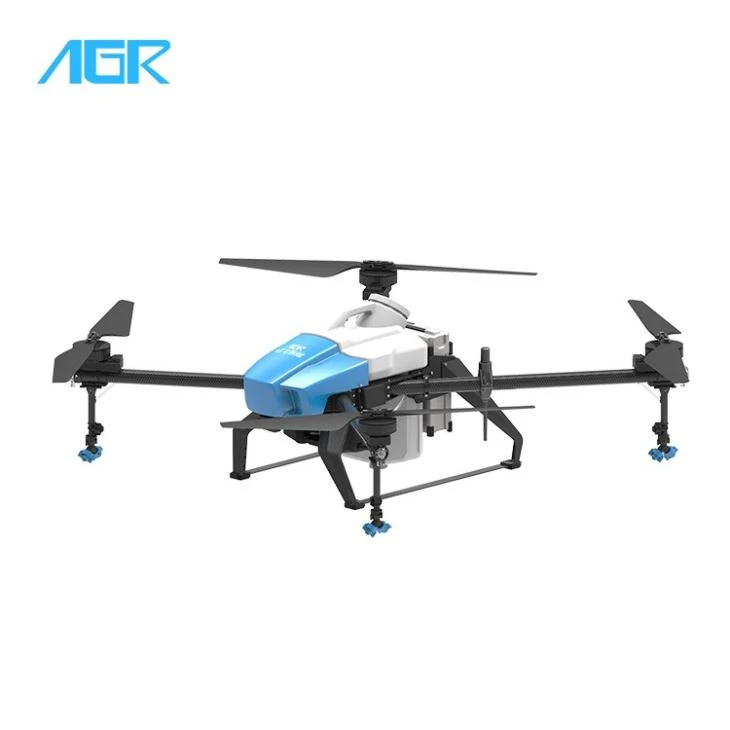

* Big capability 16L, Unique design by AGR team, focus on R&D RTK Radar large spraying width agriculture sprayer drone UAV product.
* Fold able arms, easy to change and quick transfer.
* Aircraft agriculture spraying drone for farmer with Pluggable tank, change just within 10s.
* Normally used in large filed. Such as rice, cotton, maize, wheat, and so on.
* Agriculture drone sprayer machine with IP67 waterproof, which can be wash by water directly.
* RTK centimeter level positing, 1000 seconds high accuracy positioning even offline.
Model | A16 2020 |
Motor Type | Brushless Motor X 4 |
Hourly Operating Area | 4-10 Hectare |
Operation Area per Tank | 1 Hectare (16L/Hectare) |
Droplet Size | 80-250 μm |
Flow Rate | 1L/min - 8L/min |
Spray Width | 3-6m |
Battery Type | Lithium-ion |
Maximum Attitude | 30m |
Cover Finshing | Light Blue /Blue/Red/Grey/White/Customized |
Full Loading Weight | 36.43KG |
Product Size | 1200mm×1191mm×555mm |
Packing Size | 1025mm×755mm×565mm |
Aircraft Weight | 14.23kg |
What are the factors that affect the effectiveness of RTK Radar large spraying width agriculture sprayer drone UAV?
Order of dispensing:
At the same time, a variety of agents are added to prevent and control different pests. Different formulations have different particle sizes. If the dispensing sequence is not correct, it will affect the stability of the molecular structure between the compounds, causing precipitation, crystallization, stratification, flocs, etc. After many trials and tests, the best order of dispensing is: foliar fertilizer, wettable powder, water dispersible granules, dry suspension, oil suspension, suspension, microemulsion, water emulsion, water, emulsifiable concentrate, Anti-flying additives.
Pilot operation:
The control effect of RTK Radar large spraying width agriculture sprayer drone UAV is greatly affected by the level of the pilot's operation. Different crops need to set different parameters: flying speed, flying height, whether or not spraying is missed, commonly used dots, and flying maps. The inaccuracy of these parameters will cause differences in flight defense effects.
