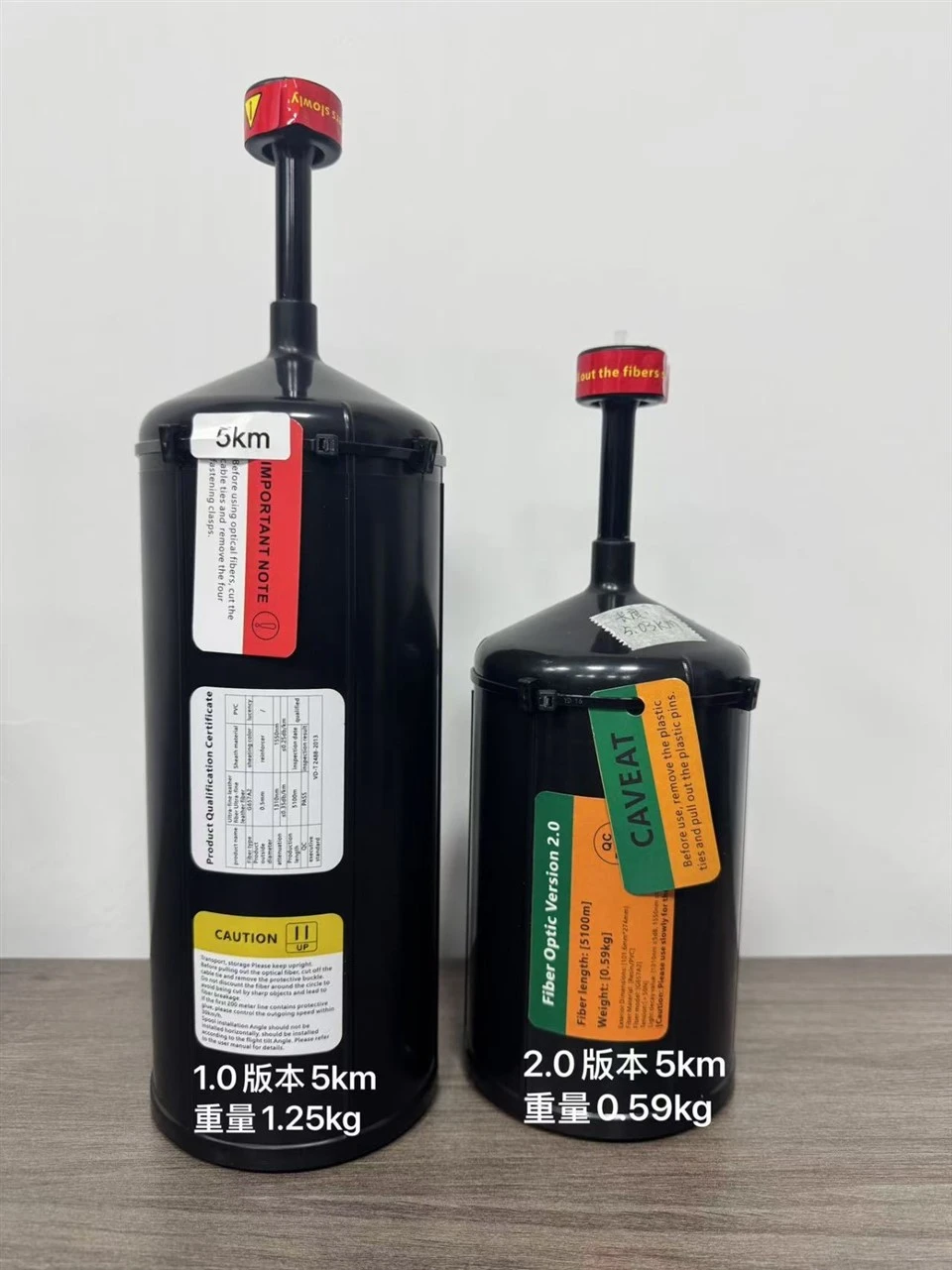

Fiber optic transmission
The fiber optic image and digital module uses optical fiber as the transmission medium, with fast transmission speed and strong stability, which can meet the needs of large-scale data transmission, is not affected by electromagnetic interference, prevents eavesdropping and wiretapping, and can support up to 20km of wired signal transmission.
Due to the complexity of the city's official website, shortwave communication is difficult to cover all scenarios. The use of optical fiber communication has high-speed and stable data transmission, strong anti-interference ability, low loss in long-distance communication, light weight, and easy to carry, which improves the efficiency and safety of pipeline maintenance.
Optical fiber communication shows significant advantages in the application of underwater robots. It achieves high-speed and stable data communication through the transmission of optical fiber signals, is not interfered by the underwater environment, and provides long-distance and large-capacity communication capabilities for underwater robots.
Technical Parameters
O Fiber interface: FC interface O Fiber type: single-mode single fiber O Product interface: GH1.25
O Video format: NTSC/PAL/SECAM O Data direction: bidirectional O Data format: TTL/S.BUS
O Speed: 0~1Mbps O Wavelength single mode: 1310(9/125μm)+1550
O Transmission distance: single-mode fiber
Sky End Product Parameters Ground End Product Parameters
|
Power supply |
9V~24V≤1A |
battery |
Li-ion7.4V6600mAh |
|
|
Battery weight |
335g |
|||
|
Shell material |
aluminum |
|||
|
Shell material |
aluminum |
|||
|
Body size |
74.5mmx38mmx19mm |
|||
|
Body size |
124mmx57.5mmx37.5mm |
|||
|
Body weight |
54g±2g |
Body weight |
186g±2g |
