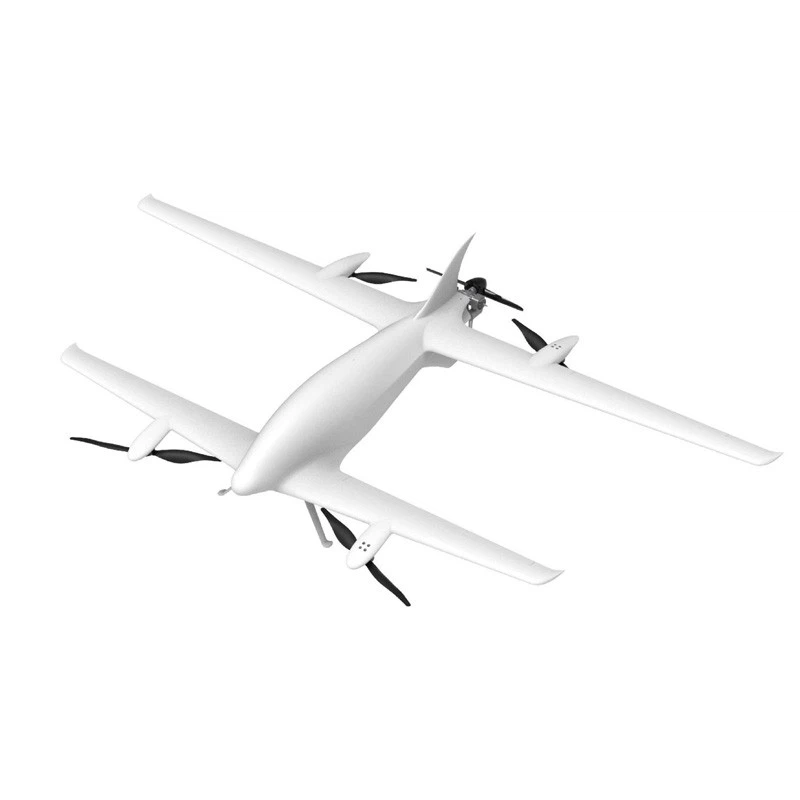

Y18 Hybrid Vertical Vtol Fixed Wing Drone

Y18 Hybrid Vertical Vtol Fixed Wing Drone
Details:
INTRODUCTION: The Y18 is an advanced vertical take-off and landing (VTOL) unmanned aerial systemdesigned with cutting-edge capabilities. Featuring modular and open architecture, it supports multi-fuel and multi-payload configurations, allowing flexibility across variousdomains, environments, and...
Send Inquiry
Chat Now
Description
Send Inquiry

product-800-800

INTRODUCTION:
The Y18 is an advanced vertical take-off and landing (VTOL) unmanned aerial systemdesigned with cutting-edge capabilities. Featuring modular and open architecture, it supports multi-fuel and multi-payload configurations, allowing flexibility across variousdomains, environments, and mission scenarios. The system adheres to a modular opensystems architecture, ensuring effective integration, reliable communication, and interopera.bility among different payloads and systems.Specifically optimized for harsh and complex environments, the Y18 incorporates advancedautomated control and artificial intelligence technologies, enabling fully autonomous.hands-free operation. This makes it particularly well-suited for challenging missions at highaltitudes or in conditions with strong winds. Additionally, the system offers robust protectionwith a high environmental rating, ensuring reliability and resilience.With its exceptional adaptability and dependable communication capabilities, the Y18 excelsin demanding operational conditions, establishing itself as the ideal solution for missionsthat require resilience and precision in difficult terrains or extreme weather scenarios.

Full-length length (gasoline version)

2001mm

Height

696 mm

span

Rear wing 3744 mm front wing 2820mm

Body material

Aerial carbon fiber composite material

Maximum load capacity

18 KG (oil + payload)

Fuel consumption

1L/H

Fuel tank capacity

11L-15L

Full take-off weight

40kg

ceiling

Gasoline version: 3500M; Aviation kerosene version: 5000M

Wind resistance level

Take off and landing 5, flight 6

cruising speed

25m/s

end-use temperature

-20℃-45℃

packing measurement

2120*900*640mm

Body protection level

IPX4

Aviation kerosene version

Can be upgraded to a heavy oil version, support the plateau

Dual-light multiaxis head camera

Target identification distance: 700m (4m*6m)

Three-light, multi-axis cloud head camera

Target identification distance: 1000m (4m*6m)
