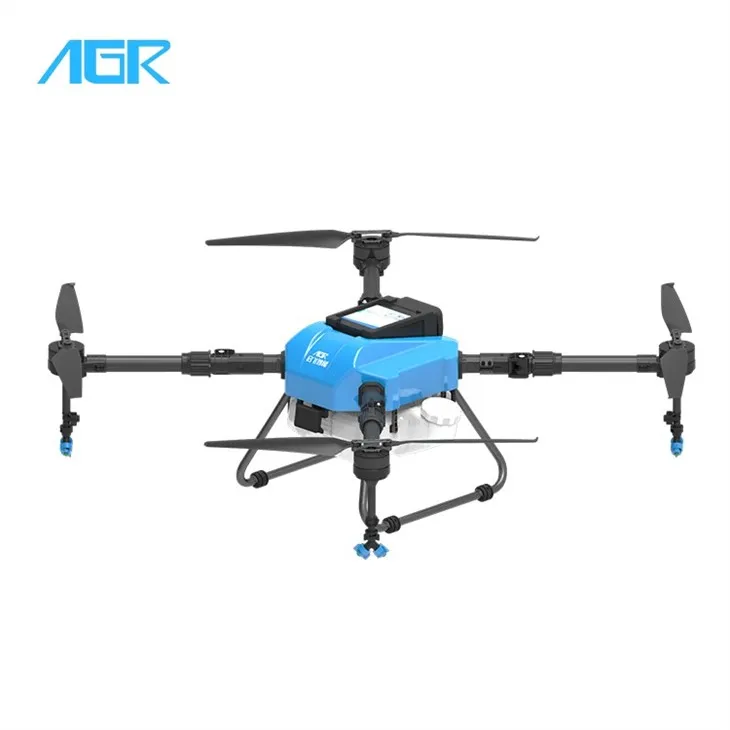

Product Introduction
* AGR R&D Exclusive Product High efficient planting drone，Suitable for all kinds of scene, very good choose for farmers.
* Precision spread drone for agricultural purpose have 10L capability tank, folding body, Compact Size and nice design by AGR teams
* Modularization design, less accessories, saving 15% maintenance costs.
* Foldable comvinient spray agricultural drone, which can be expanded into dusting, spraying and misting.
Model | Q10 2020 |
Motor Type | Brushless Motor X 4 |
Hourly Operating Area | 2.66-6.66 Hectare |
Operation Area per Tank | Modularization Design, Fewer Accessories |
Droplet Size | 80-240 μm |
Flow Rate | 1L/Min - 5L/Min |
Spray Width | 3 - 6m |
Battery Type | Lithium-ion |
Maximum Attitude | 30m |
Cover Finshing | Light Blue /Blue/Red/Grey/White/Customized |
Full Loading Weight | 25.7kg |
Product Size | 1140mm×1140mm×480mm |
Packing Size | 905mm×775mm×585mm |
Aircraft Weight | 11.3kg |
Foldable comvinient spray agricultural drone When planning a route for plant protection operations, there are usually several ways to select boundary points:
Select points directly on the mobile map;
Point selection based on mobile GPS positioning;
Aircraft flight selection point;
Point selection with high-precision handheld differential inscriber;
The route planned by the first two methods has a large position error, which will cause a position shift when the route is flying. After the deviation is found, the route can be adjusted, which will adversely affect the flight safety and flight efficiency. The AB point route mode passes the aircraft Direct selection of points by location can compensate for the undesirable consequences caused by accuracy when selecting points.
Foldable comvinient spray agricultural drone AB point route mode adopts "flight point selection" method, which eliminates the position error when using peripheral equipment to select points.
It saves the time required for point selection and improves operation efficiency when planning routes for large areas.
The current route mode of point AB has the function of adjusting route length to adapt to irregular plots
