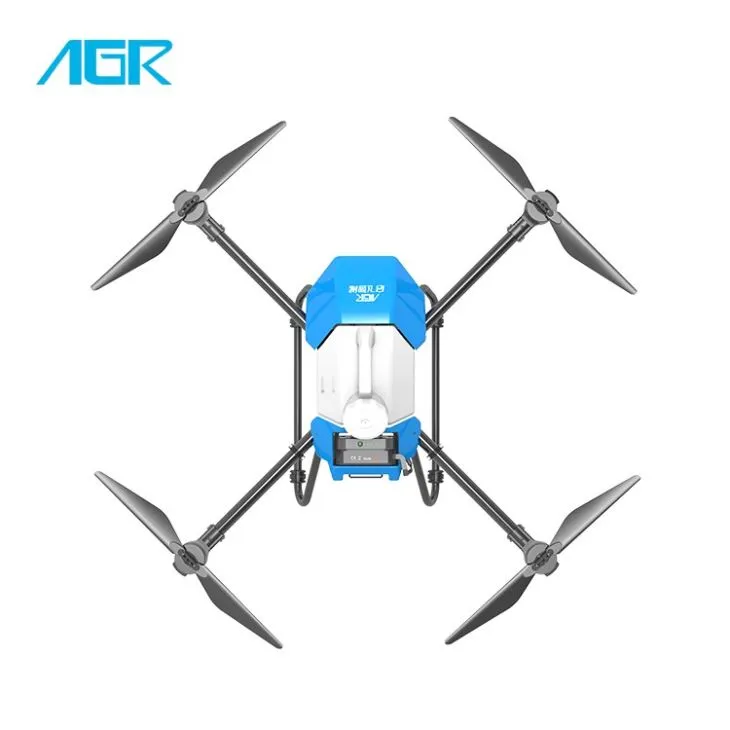

* Small AGR A6 2020 Model Planting Unbreakable Durable agriculture Drone Sprayer by AGR R&D Team.

* Compact Body Size, easy to take, convenient to transform, stable and durable.

* Equipped with FPV camera, support AB Point Flight, Fully Autonomous Mode, Manual Mode and so on.

* A6 2020 Planting Unbreakable Durable agriculture Drone Sprayer also support AGR intelligent APP 2.0 and agricultural Plant Protection Platform.

2（1）

Model	A6 2020
Motor Type	Brushless Motor X 4
Hourly Operating Area	1.33 - 4 Hectare
Operation Area per Tank	0.4 Hectare (15L/Hectare)
Droplet Size	80 - 130μm
Flow Rate	1L/Min - 1.8L/Min
Spray Width	2 - 3.5m
Battery Type	Lithium-ion
Maximum Attitude	30m
Cover Finshing	Light Blue /Blue/Red/Grey/White/Customized
Full Loading Weight	15.6KG
Product Size	883mm×874mm×406mm
Package Dimension	970mm×970mm×300mm
Aircraft Weight	7.1KG

Common use problems of plant protection drones

How to avoid problems with the spray system of Planting Unbreakable Durable agriculture Drone Sprayer

(1) Ensure that the vertebral protection drone operates when every working part is normal, and never work with illness;

(2) Do not work in bad weather conditions:

(3) Don't work with overload or workload;

(4) After the daily operation, the medicine tank, filter screen, medicine tube, flow meter, nozzle lamp must be cleaned to prevent the medicine from drying up and solidifying and blocking the spray system;

(5) The secondary dilution method should be used when preparing pharmaceutical liquids;

(6) Do not use turbid water when preparing pharmaceutical liquids, but clean and clean water;

(7) After the medicine is prepared, a filter must be used to filter the liquid medicine to minimize the impurities in the liquid medicine and avoid the use of powders and other medicines that are thick or easy to precipitate;

(8) After the operation is completed, drain the liquid or water in the flowmeter in time to prevent corrosion of the liquid and prolong the service life.
