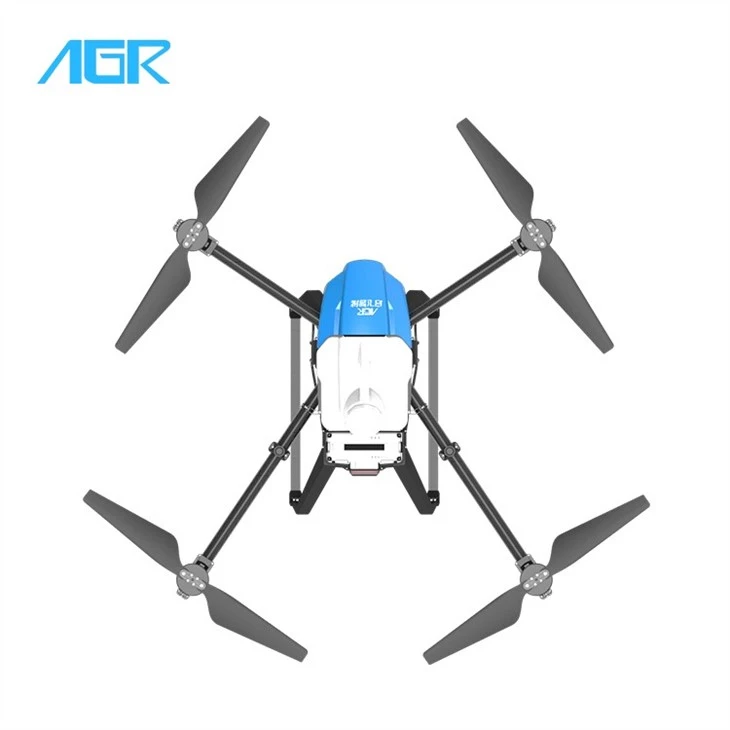

* Big capability 16L, Durable pesticide sprayer agricultural drone uav

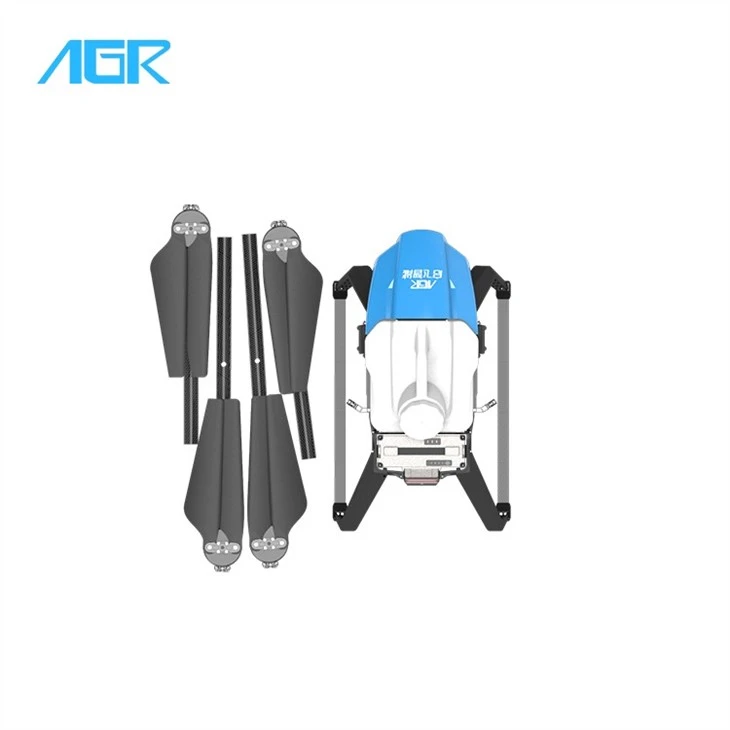

* Fold able arms, easy to change and quick transfer.

* 16L payload agriculture spraying drone UAV aircraft with Pluggable tank, change just within 10s.

* Normally used in large filed. Such as rice, cotton, maize, wheat, and so on.
* Durable pesticide sprayer agricultural drone uav, which can be wash by water directly.

* RTK centimeter level positing, 1000 seconds high accuracy positioning even offline.

2（1）

Model	A16 2020
Motor Type	Brushless Motor X 4
Hourly Operating Area	4-10 Hectare
Operation Area per Tank	1 Hectare (16L/Hectare)
Droplet Size	80-250 μm
Flow Rate	1L/min - 8L/min
Spray Width	3-6m
Battery Type	Lithium-ion
Maximum Attitude	30m
Cover Finshing	Light Blue /Blue/Red/Grey/White/Customized
Full Loading Weight	36.43KG
Product Size	1200mm×1191mm×555mm
Packing Size	1025mm×755mm×565mm
Aircraft Weight	14.23kg

Preparation before homework

First, it is necessary to determine the type of crops to be controlled, the area of operation, the terrain, the situation of diseases and insect pests, the prevention and control period, the type of chemicals used, and whether there are other special requirements.

Investigate whether the terrain is suitable for plant protection operations, determine the unsuitable operating areas in the farmland, communicate with farmers, grasp the report of the farmland diseases and insect pests, and formulate the operation plan in advance.

Check in advance the weather conditions of the work place in recent days and determine the data in advance to ensure the safety of the work.

Material preparation: The electric Durable pesticide sprayer agricultural drone uav machine requires power batteries (usually between 5-10 groups), related chargers, and power generation equipment may be carried with the vehicle when the local operating location is not convenient for charging.

Related supporting facilities: pesticide ratio, buckets for transportation, walkie-talkie for pilots and assistants to coordinate and communicate, and related work protective equipment (glasses, masks, work clothes, sun hats, etc.).
