Product Introduction

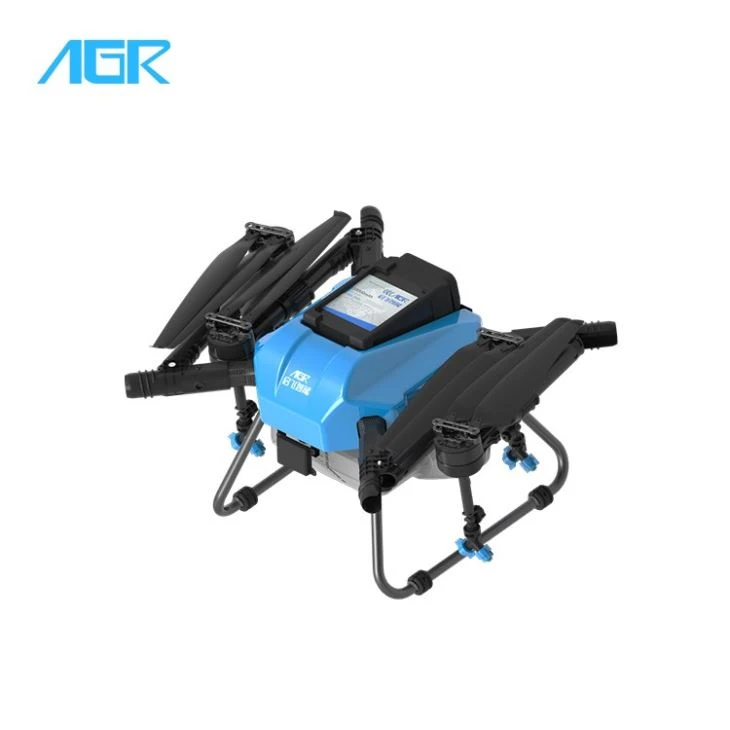

* AGR R&D Exclusive Product Q10 2020 Commercial aircraft spraying pesticides，Suitable for all kinds of scene, very good choose for farmers.

* Drone for agricultural spraying have 10L capability tank, folding body, Compact Size and nice design by AGR teams

* Modularization design, less accessories, saving 15% maintenance costs.

* Functional Commercial aircraft spraying pesticides, which can be expanded into dusting, spraying and misting.

2（1）

Model	Q10 2020
Motor Type	Brushless Motor X 4
Hourly Operating Area	2.66-6.66 Hectare
Operation Area per Tank	Modularization Design, Fewer Accessories
Droplet Size	80-240 μm
Flow Rate	1L/Min - 5L/Min
Spray Width	3 - 6m
Battery Type	Lithium-ion
Maximum Attitude	30m
Cover Finshing	Light Blue /Blue/Red/Grey/White/Customized
Full Loading Weight	25.7kg
Product Size	1140mm×1140mm×480mm
Packing Size	905mm×775mm×585mm
Aircraft Weight	11.3kg

Battery is an important agricultural drone parts. If Commercial aircraft spraying pesticides drone battery support 5C charging, the 1500 battery is 7.5A, and the 2200 battery is 11A. For battery life, we usually charge at 2C.

Taking the top motor parameter 20A15S as the standard, if 4 motors run simultaneously at the same time, each motor consumes 20A of current with sufficient ESC support, and 4 of them are 80A. If you want all motors to use their full power at the same time, The battery needs to be able to discharge 80A of current. If the battery is 80,000mah, only 1C is needed, if it is 8000mah, the battery needs 10C, 800mah is 100C, 1500mah is 53.33C, 2200mah is 36.36C, but in actual operation, it is rare that all four motors will burst at the same time, because of the multiple axis Commercial aircraft spraying pesticides drone is adjusted by different motors at different speeds to achieve steering and attitude adjustment, so a single motor may need to burst, four bursts at the same time is very rare, unless the full throttle fly thousands of kilometers to play through the cloud.
